Training Areas:
Fire Alarm & Sprinkler Modules
The systems are mounted on two-sided mobile carts and can be moved as needed for training. Each Fire Alarm Panel (FAP) and Sprinkler System is fully functioning and can simulate any number of alarms, troubles and supervisory indications. These systems allow students to trip and reset the systems to understand the various indicators and the proper response to such indications.
Addressable Fire Alarm Panel and Fire Sprinkler System
The FAP has several smoke detectors, a Carbon Monoxide monitor, pull stations, and visual/audible indicators. The sprinkler side of the cart has a dry pipe valve and wet pipe check valve with built in tamper switches on the control valves.
Non–Addressable Fire Alarm Panel and Wet Pipe Fire Sprinkler System
The FAP side has several smoke and heat detectors, a Carbon Monoxide monitor, pull stations, and visual/ audible indicators. The sprinkler side of the cart has both a wet pipe with add-on tamper switches on the valves for indicating backflow, along with a flow switch, and an alarm bell.

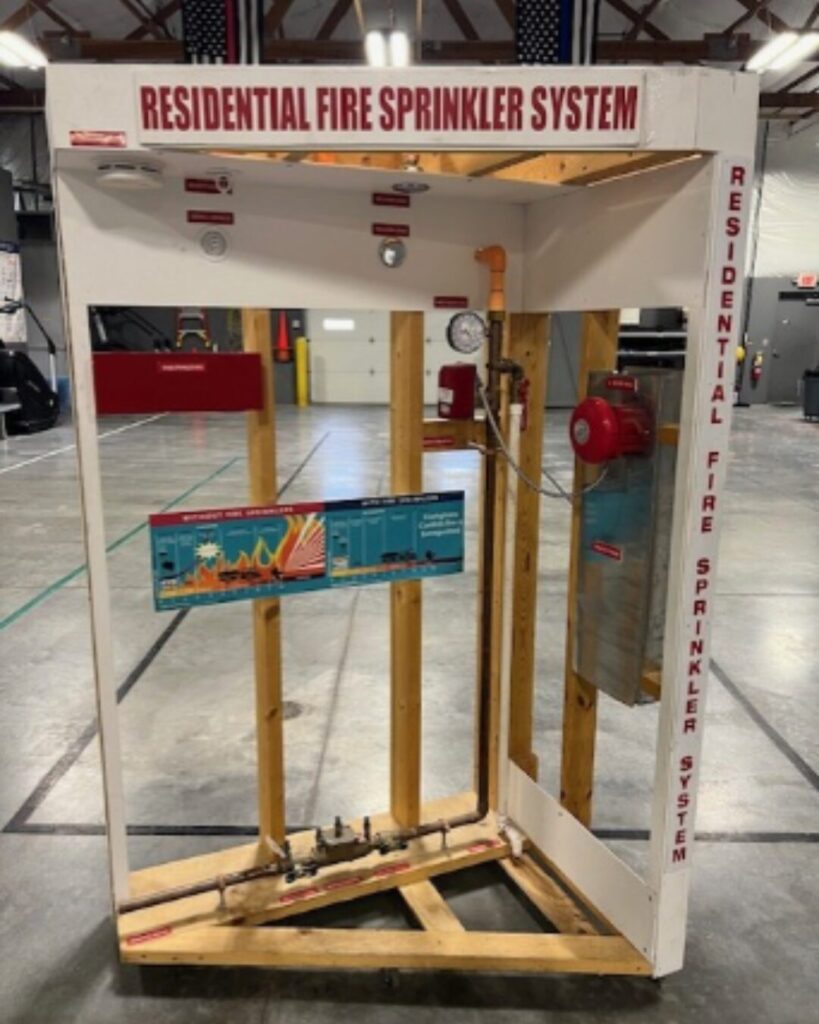

Residential Home Sprinkler Display
The Residential Home Fire Sprinkler Display features control valves with a backflow preventer, a water flow switch, water pressure gauge, smoke alarm, pendant and sidewall sprinklers, HVAC to showcase the inside bell, and an inspector’s test valve/main drain.
